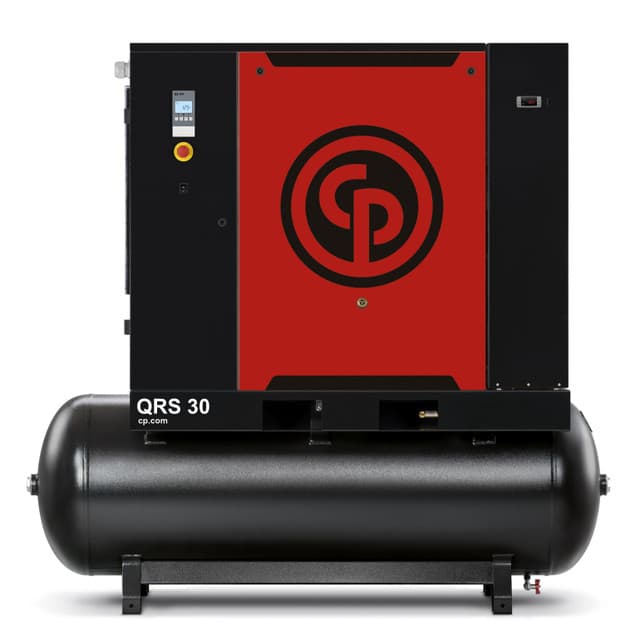

Chicago Pneumatic QRS-30, 30hp Rotary Screw Air Compressor

Chicago Pneumatic, Model QRS 30, comes with Tri-voltage motor with optional tank and refrigerated air dryer.

Operating Pressure

• 100-175 PSIG,
• Flow Rate: 128.2-97.5 cfm (model/pressure dependent)
• Total absorbed power at full load (100 psi): 27.2Kw, (175 psi):26Kw, Motor
• Power Supply: 208–230/460V or 575V, 3-phase, 60Hz

Cooling Type

• Air-cooled, oil-injected rotary screw Sound Level: 70 dBA
• Duty Cycle: 100% continuous operation

Controller

• ES4000-Connect Controller, Dimensions (Base Mount): 44 x 30 x 49 in
• Dimensions (Tank Mount): 75 x 30 x 72 in
• Weight: 758 – 1365 lbs. (configuration dependent)
