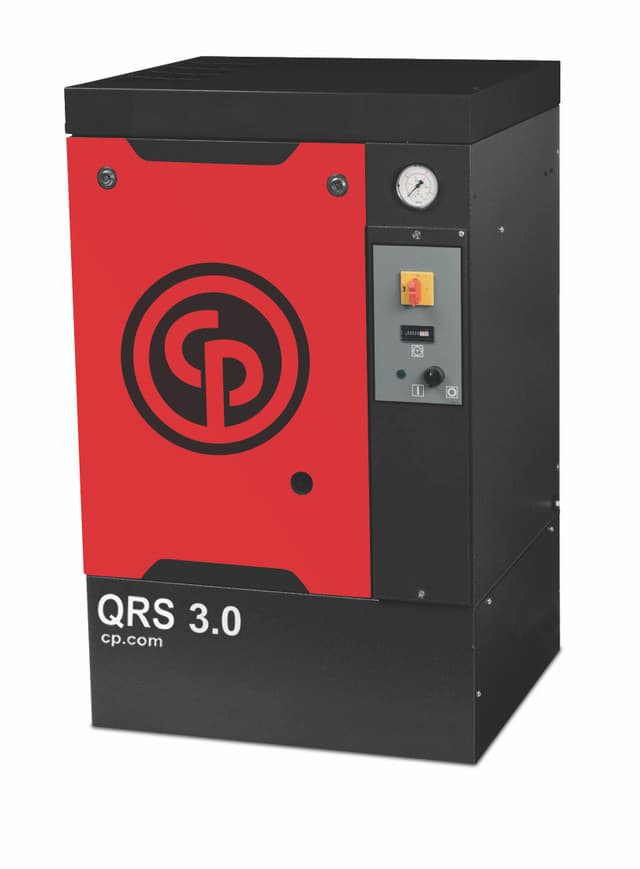

Chicago Pneumatic QRS-3, 3hp Rotary Screw Air Compressor

Chicago Pneumatic, Model QRS3, comes with Tri-voltage motor with optional tank and refrigerated air dryer.

Operating Pressure

• 116 – 145 psig
• Flow Rate: 12.6 – 9.4 cfm (model/pressure dependent)
• Total absorbed power at full load (116 psi): 3.8Kw, (145 psi): 3.7Kw
• Power Supply: 208–230/460V or 575V, 3-phase, 60Hz

Cooling Type

• Air-cooled, oil-injected rotary screw Sound Level: 61 dBA
• Duty Cycle: 100% continuous operation

Controller

• Analog, electro-pneumatic, Dimensions (Base Mount): 24 x 24 x 37 in
• Dimensions (Tank Mount): 56 x 23 x 49 in
• Shipping Weight: 276-452 lbs. (configuration dependent)
